PIRANHA A

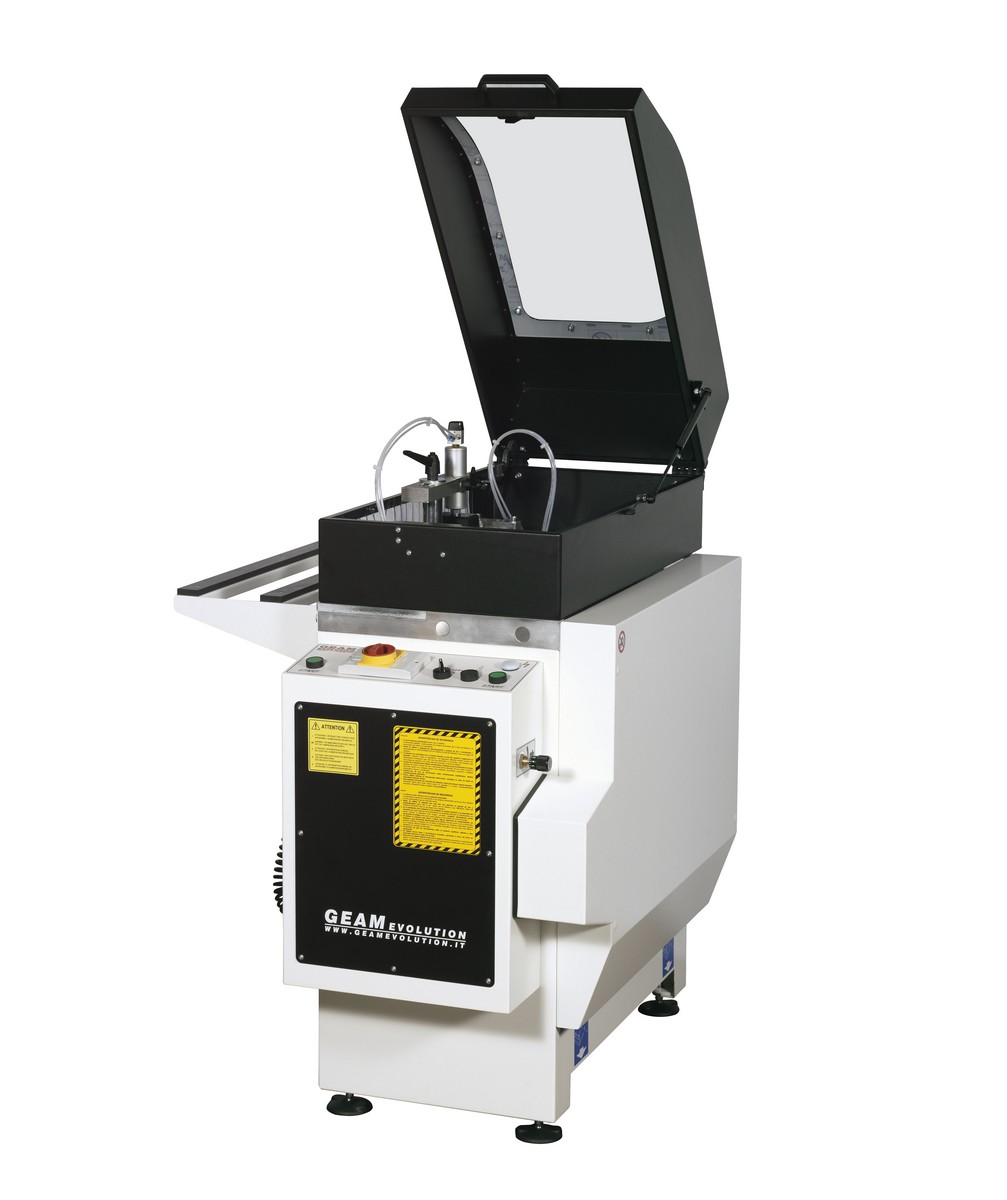

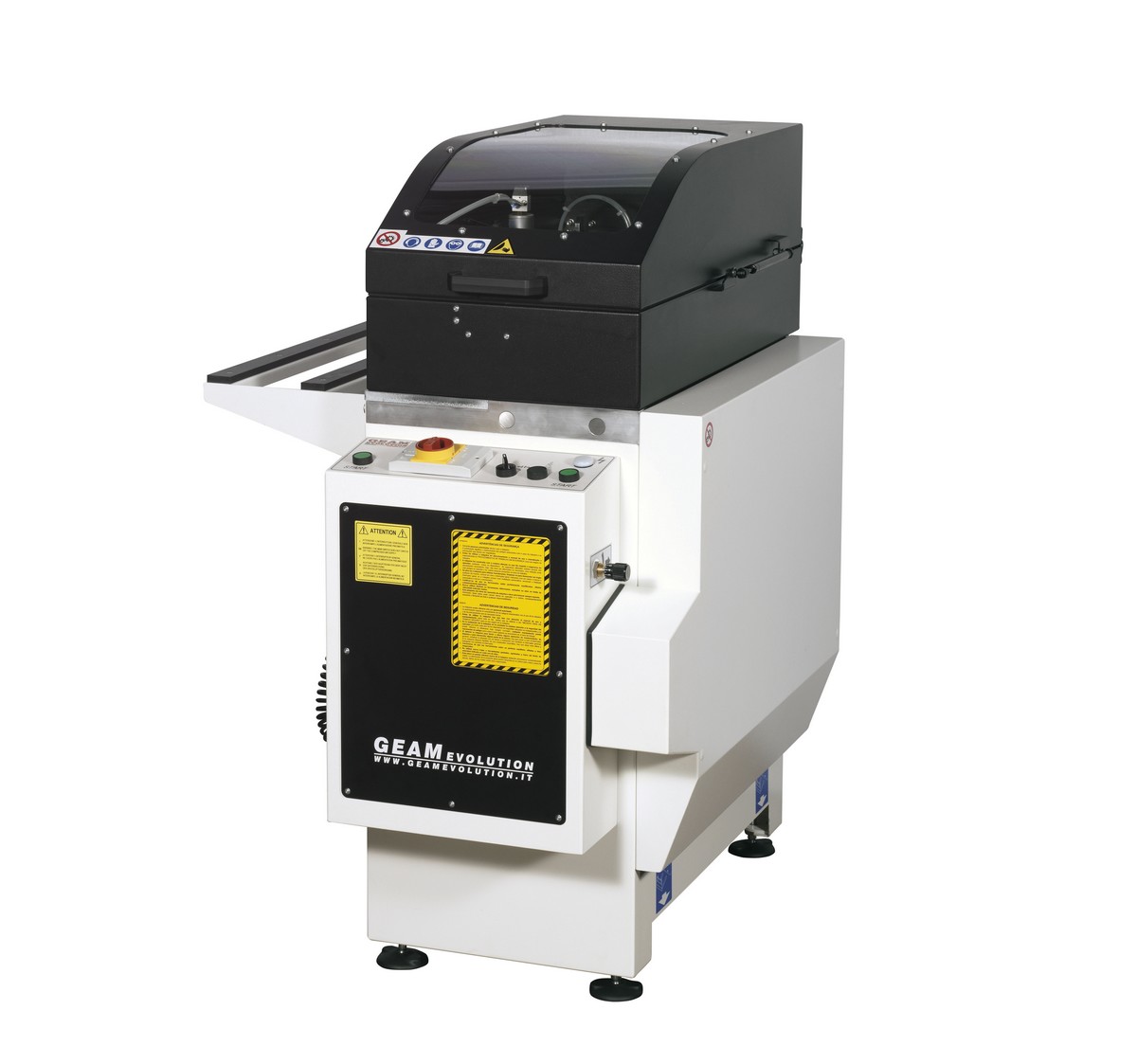

HORIZONTAL END MILLING MACHINE PIRANHA A

TECHNICAL DATA
Horizontal end milling machine with automatic
feeding, milling at 45°/ 90°/ -45° and intermediate
degree with quick change of the cutter block.
Three-phase motor 2 HP (1,5Kw) 2800 rpm
Cutter block spindle Ø 32 mm
Sliding horizontal stroke 480 mm
Max diameter of the cutters 185 mm
Min. working pressure 7 bar
Overall dimensions: 82x98x124 cm
Weight: 130 kg

STANDARD EQUIPMENT:

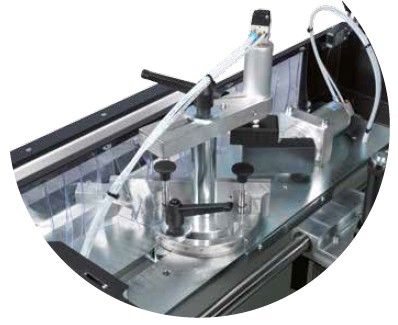

Pneumatic clamping set
Turret stop for presetting 6 milling depths
Pneumatic spray mist lubrication
Cutter block D. 32mm
Air Filter
Air Gun
Full protection guard

ACCESSORI A RICHIESTA:
Cutter block Ø32mm
Single phase motor

We reserve the right to make modifications.
